Posted on March 11, 2021 by Jena Lococo
Carbon capture hit a policy trifecta at the end of 2020 and start of 2021, and that momentum has continued with recent, exciting commercial developments. ExxonMobil formed a new business line that will deploy $3 billion by 2025 and advance 20 new carbon capture opportunities, Summit Agricultural Group announced plans for the largest carbon capture and storage project in the world to decarbonize the biofuel and agricultural industry throughout the Midwest, and even Elon Musk got onboard by funding a $100 million carbon capture competition. These announcements underscore the criticality and popularity of this technology to meeting global decarbonization goals. This is true for carbon capture at power plants, manufacturing facilities and even direct air capture.
While promising technologies are being developed to utilize carbon emissions in fuels and materials, storage of carbon dioxide deep underground remains a tried and true mitigation solution and is feasible around the U.S. because of the vast amount of available storage resources. However, we can only capture and reduce carbon emissions as fast as we can permit the projects to do so. And the success of the rapidly growing number of carbon capture projects hinges on the ability to timely obtain a single permit – the Environmental Protection Agency’s (EPA) Underground Injection Control (UIC) Class VI permit.
Underground Injection of Captured Carbon
Today, the changing climate is largely caused by larger amounts of greenhouse gases emitted into the air. Another way to think about this: like a bathtub being filled with water, greenhouse gases are building up in the atmosphere. Carbon dioxide, the most common greenhouse gas, is not toxic like a normal air pollutant – we breathe it out all the time and plants use it as food, helping to “drain” carbon dioxide from the atmosphere. But, like a bathtub, if it fills faster than plants can manage, a little overflow is not ideal, and significant overflow will cause all kinds of problems. Capturing the carbon dioxide is obviously the first step, but then what do we do with it?
There are a number of techniques for utilizing or sequestering captured carbon. The underground injection control program was created by EPA to regulate injection wells for sequestered carbon dioxide. Unlike common residential water wells that pull up water, this program regulates injection wells that push down various substances. EPA developed the rule to ensure whatever was being injected did not risk Underground Sources of Drinking Water (known as “USDWs”).
Within the program, there are six “classes” of injection wells. The newest class of wells, referred to as Class VI, was developed in 2010 for the injection of carbon dioxide into deep rock formations for long-term geologic sequestration. How can we be sure that injecting and storing carbon dioxide is safe and it remains in place? First of all, the carbon dioxide is injected well below sources of drinking water and is permanently sealed into the reservoir by an impermeable layer of rock, called cap rock. Second, injecting and sequestering carbon is a tried and true technology and has been used for decades to help safely produce oil, a process known as enhanced oil recovery. Injection of carbon dioxide for enhanced oil recovery is subject to the Class II program, which regulates wells used to inject fluids associated with oil and natural gas production.

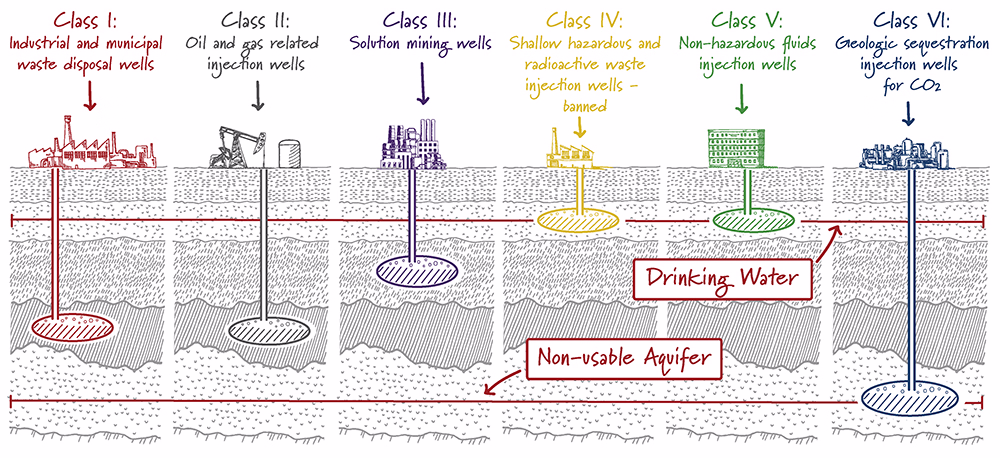

The Six “Classes” of Injection Wells
To demonstrate there is no harm posed to drinking water, the Class VI program includes more specific and comprehensive requirements than any other injection well class. The requirements and performance standards of Class VI are based on the unique risk factors of carbon dioxide injection compared to other types of injection. Key aspects of the Class VI program include extensive site characterization, costly construction and operation requirements, comprehensive monitoring, and stringent site closure requirements.
Injection wells are regulated by the EPA unless a state or tribal agency has applied for and obtained primary responsibility to implement the program, otherwise known as primacy. To obtain primacy, a state or tribe must adopt laws and regulations at least as stringent as the EPA’s minimum requirements. Many states already have primacy for the other injection well classes and have experience in implementing the UIC program. As of today, only North Dakota and Wyoming have obtained primacy for the Class VI program. However, no state has issued a Class VI permit yet.

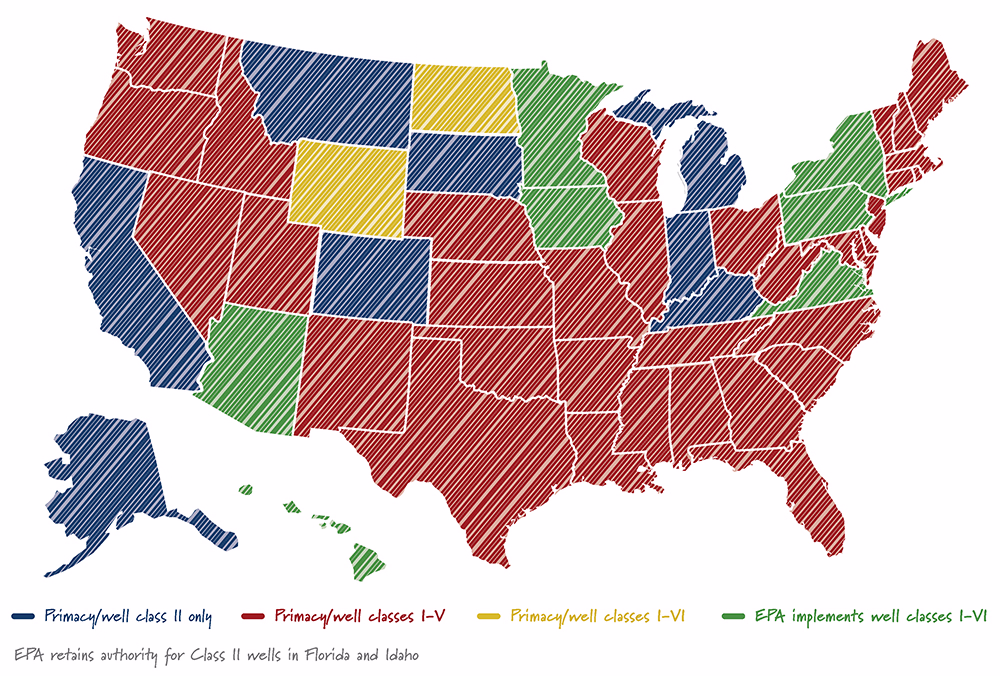

Primacy for Injection Well Classes
Challenges with the Class VI Program
A program that was meant to protect the public’s drinking water has instead created many challenges for cost-effective deployment of carbon capture and sequestration. Of the more than 700,000 wells the UIC program has permitted, only two Class VI wells have ever been permitted for injection, both located at the Archer Daniel Midland’s ethanol plant located in Illinois. The typical permit application processing time was six years for both of these permits. This timeline is a significant barrier to develop storage capacity at the rate needed to capture carbon dioxide as well as for projects trying to take advantage of the incentives provided by the 45Q tax credit. Additionally, there are significant costs associated with complying with the onerous corrective action and monitoring requirements of the Class VI program, which are not always proportionate with the risk to drinking water from the project.
Removing the Obstacles of Class VI
The Class VI permit approval process must become more efficient to enable growth of carbon capture and sequestration projects while also protecting drinking water resources. Changes that should be made to the Class VI program include:
- Targeted resources for speeding up EPA’s review process. With the increased interest in carbon capture and the large number of carbon capture, removal, and storage projects in the development pipeline, the EPA’s needs for fulfilling permitting requests exceed what has been historically allocated to the program. Additional resources will help EPA rebuild internal capabilities to decrease permitting times, contributing to overall shortened deployment timelines of carbon capture, removal, and storage. A proposal is already in the works to fix this in the bipartisan Storing CO2 and Lowering Emissions (SCALE) Act sponsored by Reps. McKinley (R-WV) and Veasey (D-TX), which authorizes resources to bolster the EPA’s ability to approve Class VI permits.
- Accelerate the primacy approval process for states. Due to the long federal permitting process and lack of staffing resources at EPA dedicated to this program, many states are looking to develop and implement their own programs. Only North Dakota and Wyoming have received primacy over Class VI wells, but multiple states have either already applied or signaled their intent to apply. Issuing permits at the state level has typically translated to faster review times in other underground injection control permits. It allows states more freedom to craft rules in a way that works best for them to balance the natural resource development and environmental stewardship of that state.
- Implement fit-for-purpose, risk-based requirements. There is no one-size-fits-all carbon capture and sequestration project; each facility will have its own unique scenario based on the properties of the injection stream, reservoir, and technology, among other factors. Injecting into oil and gas reservoirs where the conditions have been studied for decades is significantly different from injecting into greenfield project areas, such as saline aquifers where very little data exists in the beginning. The requirements imposed on the project developer should be commensurate with the risk associated with the projects.
- Establish clear permitting timelines. The Class VI permitting timeline has been a major obstacle for carbon capture projects. Projects often exceed hundreds of millions of dollars, and multi-year permitting processes pose significant project risk because of the uncertainty in the timing of receiving project approval. Establishing a clear permitting timeline will increase the efficiency of the process and provide greater certainty to project developers. The Energy Act of 2020 provided a much-needed extension to the 45Q tax credit, but without a timely permitting process, many of these projects may not be possible.
It is clear that carbon capture and sequestration must be a tool in the proverbial technology toolbox. Streamlining the permitting process and removing obstacles for the deployment of carbon capture is crucial for the success of this technology in large-scale CO2 emission reductions.
